CYB

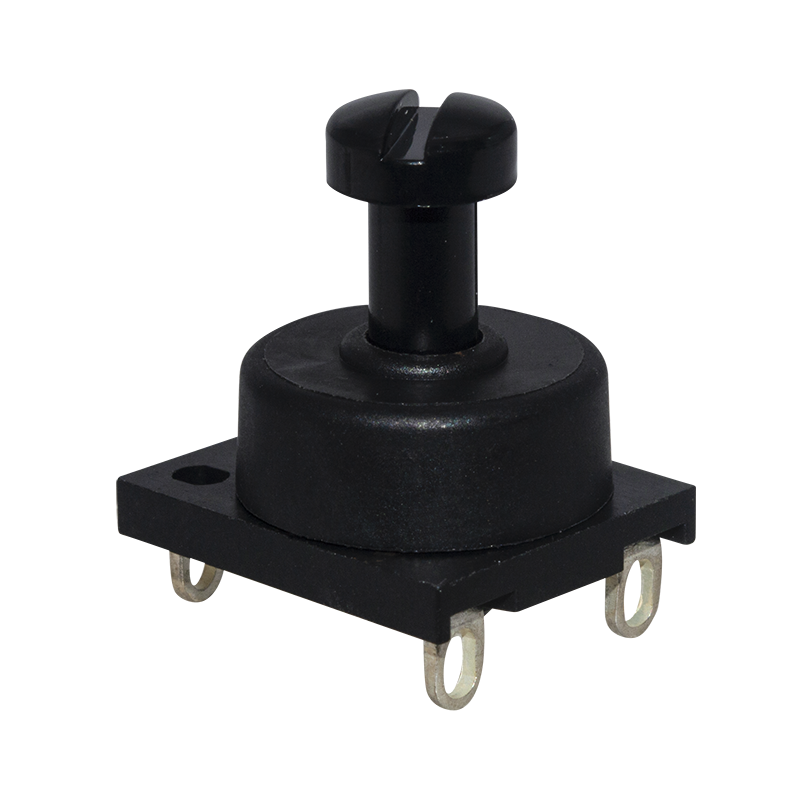

双极双投旋钮开关
- 特性
- 快速动作
- 可靠性高
- 操作力大、旋转角度范围大
- 双极双投旋钮开关
- 规格
- UL1054 : 10.1A 125VAC, 5A 250VAC T65 6000 次;15.2A 125VAC, 7.6A 250VAC T65 6000 次
- ENEC : 16A 125VAC, 8A 250VAC T85 400 次 IP30;10A 125VAC, 5A 250VAC T85 300 次 IP30;6A 125VAC, 3A 250VAC T85 300 次 IP30
- 绝缘阻抗 : ≥ 50MΩ
- 接触阻抗 : ≤ 50mΩ
产品种类
| 零件编号 | 类型 | 电流 | 电压 | 电路 | 端子类型 | 认证 |
|---|---|---|---|---|---|---|
| CYB-2210-A0K31-02R | 旋转开关 | 10.1A, 5A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-ABK32-01R | 旋转开关 | 10.1A, 5A, 10A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-ABK32-02R | 旋转开关 | 10.1A, 5A, 10A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-ABK32-05R | 旋转开关 | 10.1A, 5A, 10A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-ABL32-03R | 旋转开关 | 10.1A, 5A, 10A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-ACK32-01R | 旋转开关 | 10.1A, 5A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2210-BK-08 | 旋转开关 | 10.1A, 5A, 10A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, ENEC |
| CYB-2216-A0K23-02R | 旋转开关 | 16A, 8A | 125VAC, 250VAC | ON-ON | Soldering | ENEC |
| CYB-2216-AAK23-01R | 旋转开关 | 16A, 8A | 125VAC, 250VAC | ON-ON | Soldering | ENEC |
| CYB-2216-AAM23-01R | 旋转开关 | 16A, 8A | 125VAC, 250VAC | ON-ON | PCB | ENEC |
| CYB-2216X-ABK02-01R | 旋转开关 | 16A, 8A | 125VAC, 250VAC | ON-ON | PCB | ENEC |
