ERA

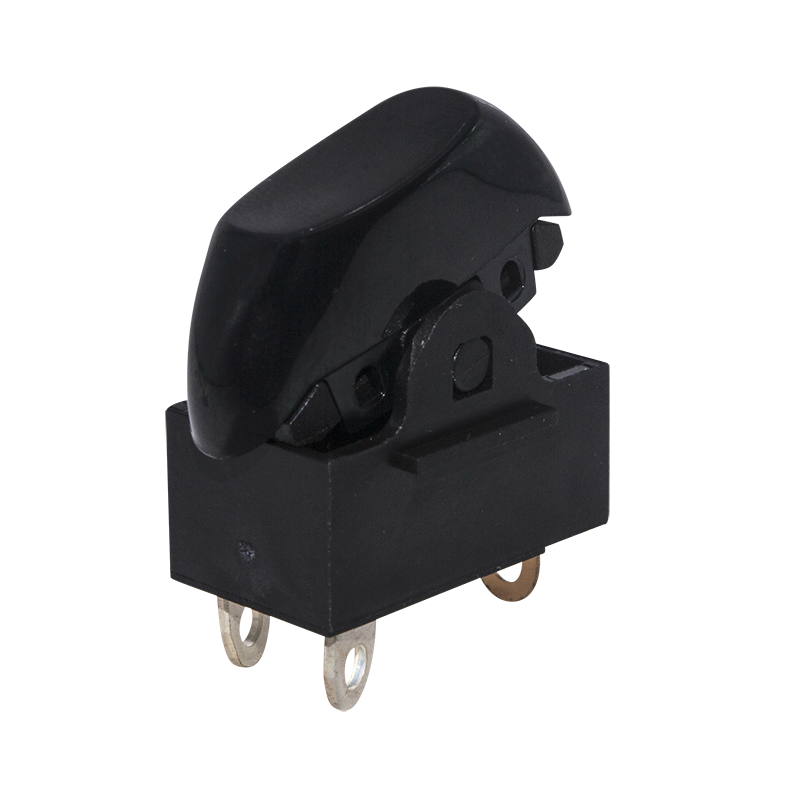

緊湊型長壽命翹板開關

特性
緊湊型翹板開關
可承受高負載，50000次長電氣，長壽命翹板開關
規格
UL61058 : 16.1GP/16.1RA 125VAC ,10.1GP/10.1RA 250VAC;15.1GP/15.1RA 125VAC, 7.5GP/7.5RA 250VAC ;μ T65/T85 10000 次
UL1054 : 15.1A 125VAC , 7.5A 250VAC;13A 125VAC, 6.5 A 250VAC;T85 6000 次
ENEC: 10A 220/250VAC μ T85 10000/50000 次
絕緣阻抗 : ≥ 50MΩ
接觸阻抗 : ≤50mΩ

產品種類

零件編號類型電流電壓電路端子類型認證
ERA-1215-P-AAS31-0翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-01R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-03R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-04R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-05R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-06R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-07R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-08R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-AAS31-1翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
ERA-1215-P-ABS31-01R翹板開關15.1A, 10A, 7.5A125VAC, 250VACOFF-ON-ONSolderingUL1054, ENEC
