BRF

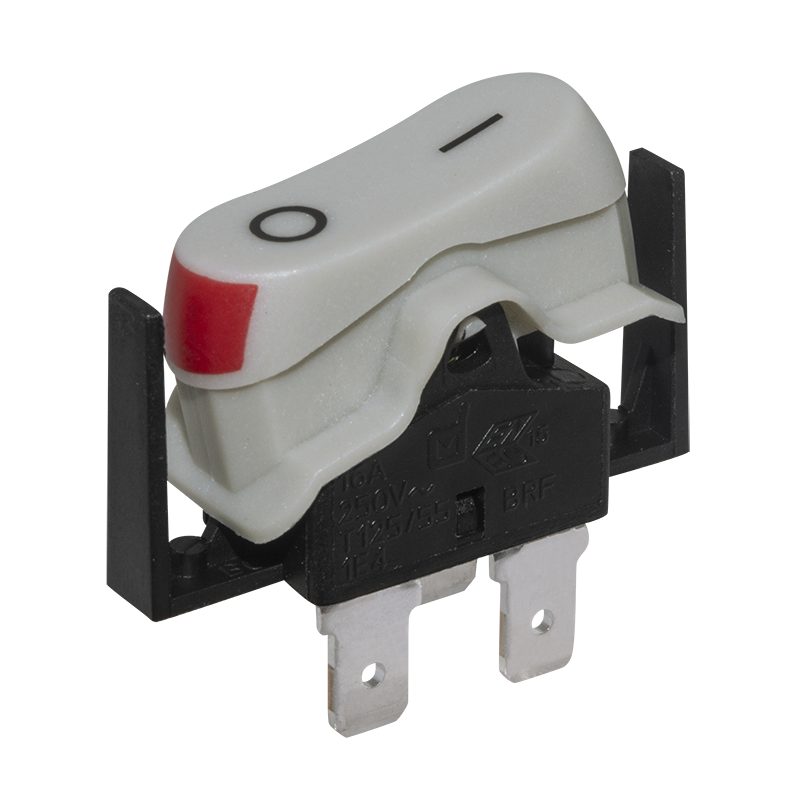

可帶燈翹板開關

特性
可以帶氖燈或LED燈，帶燈翹板開關
多種形狀按鈕及端子可選
規格
UL1054 : 15A 125VAC, 7.5A 250VAC T105 6000次 12A 125VAC, 6A 250VAC T105 6000次
ENEC/CQC: 16(4)A/16A 250VAC T125/55 10000次
絕緣阻抗 : ≥ 50MΩ
接觸阻抗 : ≤50mΩ

產品種類

零件編號類型電流電壓電路端子類型認證
BRF-1115-0-ABA31-02翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-0-ABA31-04R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-0-CBA21-01B翹板開關16A250VACON-OFFQCENEC
BRF-1115-0-CBA21-07R翹板開關16A250VACON-OFFQCUL1054
BRF-1115-0-CBC31-02R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-AAA31-03R翹板開關16A, 15A, 7.5A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-AAC31-04R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ACC33-03R翹板開關16A, 15A, 7.5A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ADC32-07R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ADC32-23R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ADC32-28R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ADC32-31R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-ADC32-32R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1115-N-DJC31-01R翹板開關15A, 7.5A, 16A125VAC, 250VACON-OFFQCUL1054, ENEC
BRF-1116-DM-DAA24-01R翹板開關16(4)A250VACON-OFFQCUL1054, ENEC
BRF-1116-DM-DAA24-02R翹板開關16(4)A250VACON-OFFQCENEC
BRF-1116-DM-DLA24-01R翹板開關16(4)A250VACON-OFFQCUL1054, ENEC
BRF-1116-DM-DLA24-02R翹板開關16(4)A250VACON-OFFQCENEC
BRF-1116-DM-DMA25-01R翹板開關16(4)A250VACON-OFFQCUL1054, ENEC
BRF-1116-DM-DMA25-02R翹板開關16(4)A250VACON-OFFQCENEC
BRF-1116-DM-EGA24-01R翹板開關16(4)A250VACON-OFFQCENEC
BRF-1116-N-BHA21-03R翹板開關16A250VACON-OFFQCENEC
