SSM

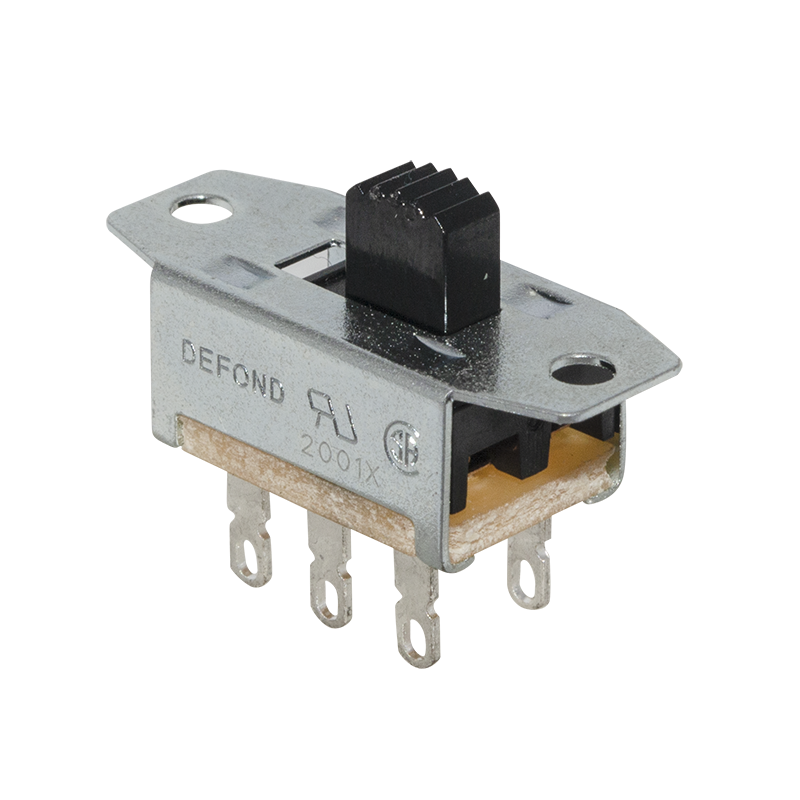

單極或雙極小尺寸滑動開關
- 特性
- 單極或雙極電路
- 尺寸小，行程短，適合小空間結構安裝
- 鐵殼、端子、滑塊形狀可選，單極小尺寸開關，雙極小尺寸開關
- 規格
- UL1054/CSA : 6A 125VAC, 3A 250VAC, 0.5A 125VDC T55/T65 6000 次;3A 125VAC, 1.5A 250VAC, 0.5A 125VDC T55/T65 6000 次; UL1054 : 0.5A 125VAC/125VDC T55/T65 6000 次
- 絕緣電阻 : ≥ 50MΩ
- 接觸電阻 : ≤ 50mΩ
產品種類
| 零件編號 | 類型 | 電流 | 電壓 | 電路 | 端子類型 | 認證 |
|---|---|---|---|---|---|---|
| SSM-1203-0-BL-10 | 滑動開關 | 3A, 1.5A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-1203-CAA14-01R | 滑動開關 | 3A, 1.5A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054, CSA |
| SSM-1203-CTL14-03R | 滑動開關 | 3A, 1.5A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054, CSA |
| SSM-1203X-VGL16-03 | 滑動開關 | 3A, 1.5A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-1206-DBL14-03R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-1206-DBQ14-02R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-1206-DBS14-01R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-2206-CBB11-01R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054, CSA |
| SSM-2206-CBL13-01R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054, CSA |
| SSM-2206-DAC13-02R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054 |
| SSM-2206-DAP11-01R | 滑動開關 | 6A, 3A, 0.5A | 125VAC, 250VAC, 125VDC | ON-ON | Soldering | UL1054, CSA |
