Compact Structure Slide Switch
Back
CSJ

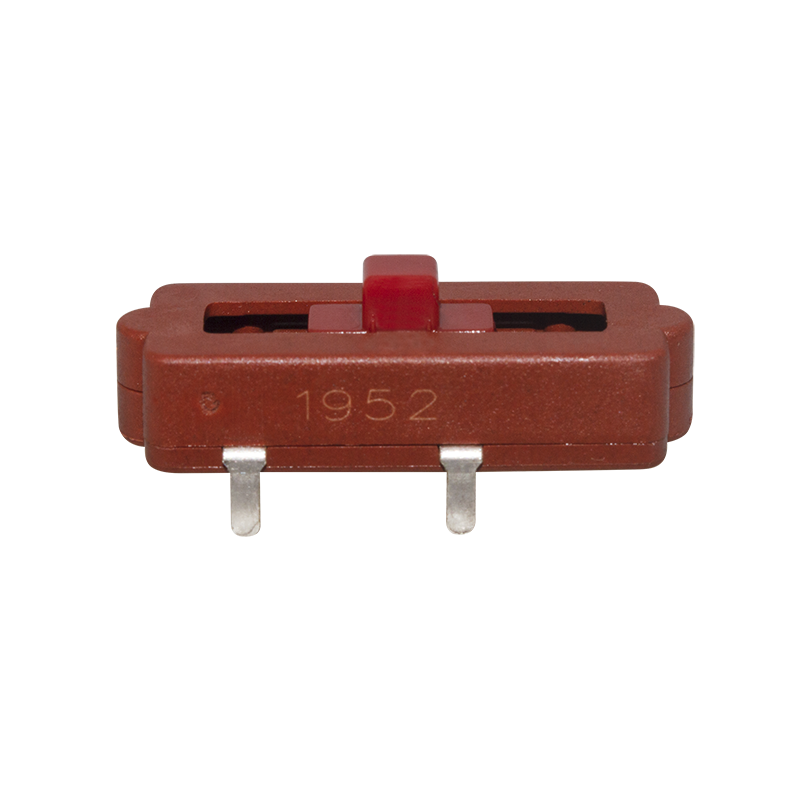

Compact Structure Slide Switch

Features
High reliability
Small Size that suitable for tiny space structure installation
Variety of terminals and knob shapes
Multi
circuits options
Compact Structure Slide Switch
Specifications
UL1054: 8A 125VAC , 4A 250VAC T65 6000 cycles;
6A 125VAC, 3A 250VAC T65 6000 cycles;
6A 125VAC T105 6000 cycles;
ENEC/CQC: 4A / 3A/ 1.5A 250VAC T85 10000 cycles for CSJ
13XX;
3(1)A 250VAC T85 50000 cycles for CSJ
12XX;
Insulation resistance: ≥ 50MΩ
Contact resistance: ≤50mΩ

Product Varients

Part Number(s)TypeCurrentVoltageCircuitTerminal TypeCertification(s)
CSJ-1206-PAB31-07RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PAP31-08RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONPCBUL1054, ENEC
CSJ-1206-PAP31-12RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PAP31-14RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PAP31-18RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONPCB, SolderingUL1054, ENEC, CQC
CSJ-1206-PAS31-01RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PAS31-03RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PAT31-01RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PCP31-01RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PCP31-03RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1206-PCP31-06RSlide Switches6A, 3A, 3(1)A125VAC, 250VACON-ONPCB, SolderingUL1054, ENEC, CQC
CSJ-1308-BBH32-02RSlide Switches8A, 4A125VAC, 250VACON-ONSolderingUL1054, ENEC
CSJ-1308-BBH32-03RSlide Switches8A, 4A125VAC, 250VACON-ONSolderingUL1054, ENEC, CQC
CSJ-1308-BBP02-01RSlide Switches8A, 4A125VAC, 250VACON-ONPCB/
CSJ-1308-BBP32-01RSlide Switches8A, 4A125VAC, 250VACON-ONSolderingUL1054, ENEC
Specification Download
