EGD-11

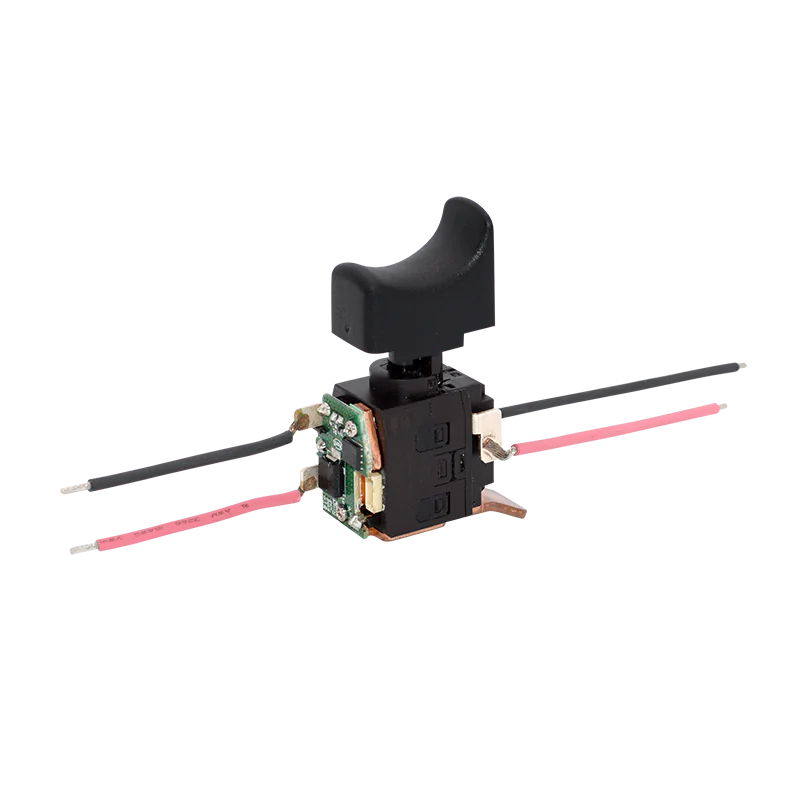

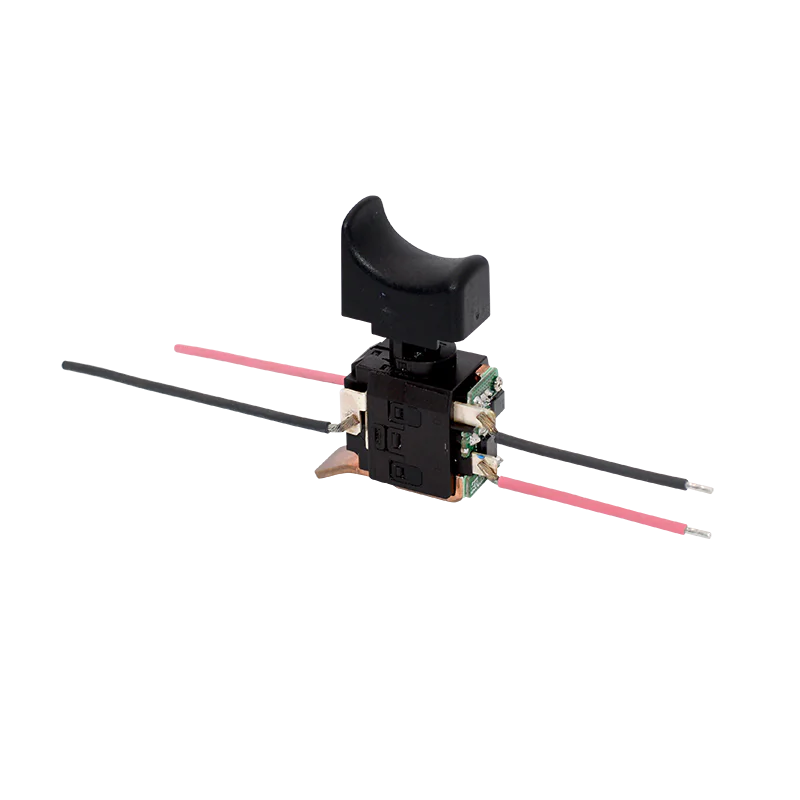

Midrange Variable Speed Trigger Switch With Battery Protection Electronics
- Features
- Variable Speed Control (VSC), Variable speed trigger switch
- Ultra compact size
- Electronic bypass
- Integrated F/R signal control
- Soft start
- Under voltage protection
- Overload protection
- Battery temperature protection
- Dust protected
- Options
- Brake
- Signal pins for LED, fuel gauge or ID
- External MOSFET
Ultra compact Variable Speed Control (VSC) switch with integrated Li-ion tool control and protect functions for applications up to 30A 16Vdc.
EGD offers great advantages on ease of assembly for minimal wires and no remote electronic module. The small size allows compact and ergonomic end-product design.
Product Varients
| Part Number(s) | Type | Approvals | Configurations | Certification(s) |
|---|---|---|---|---|
| DC Switches | 8RA/10RA/12RA/16.1 RA Max, 16Vdc, 1E4 | E-switch | cULus | |
| DC Switches | 8A/10A/12A/16.1A Max, 16Vdc, 1E4 | E-switch | ENEC | |
| DC Switches | 16.1A Max, 16Vdc Max, 1E4 | E-switch | CQC |
