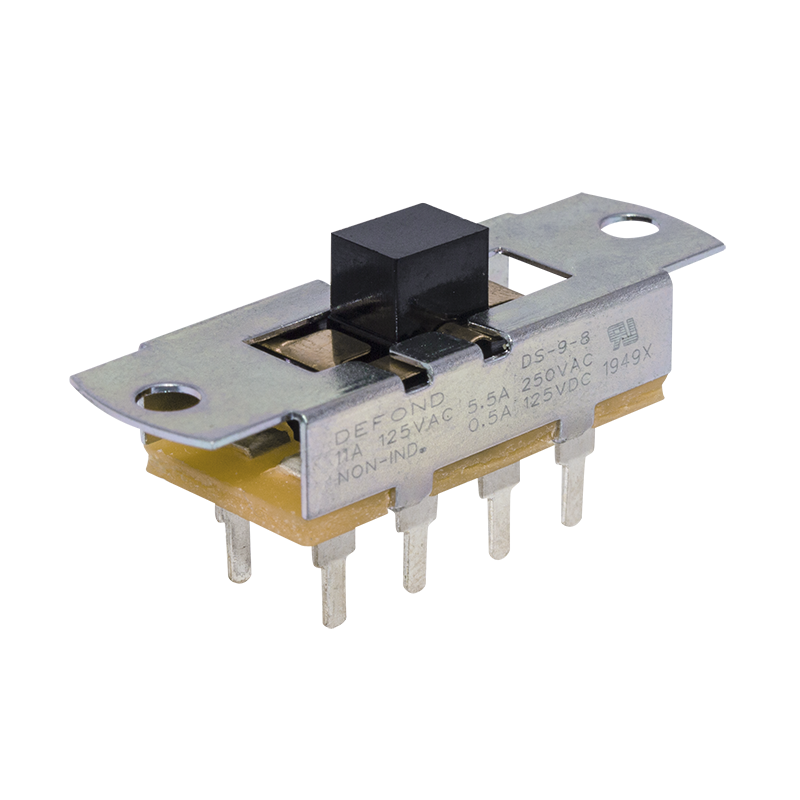

Multi-Positions Slide Switch

Features
Variety of terminals and knob shapes
Multi
circuits Slide Switch Multi Positions
Specifications
UL1054 : 11A 125VAC(N.I.), 5.5A 250VAC(N.I.) 6000cycles
0.5A 125VDC T105/T65 6000cycles
6A 125VAC(N.I.), 0.5A 125VDC T65 6000cycles
13A 125VAC(N.I.), 6.5A 250VAC(N.I.) T65 6000cycles
Insulation resistance: ≥ 50MΩ
Contact resistance: ≤50mΩ

Product Varients

Part Number(s)TypeCurrentVoltageCircuitTerminal TypeCertification(s)
DSF-2311-CCP11-01RSlide Switches11A, 5.5A, 0.5A125VAC, 250VAC, 125VDCON-ONPCBUL1054, CSA
DSF-2311-CCP11-02RSlide Switches11A, 5.5A, 0.5A125VAC, 250VAC, 125VDCON-ONPCBUL1054, CSA
DSF-2311-DAD11-01RSlide Switches11A, 5.5A, 0.5A125VAC, 250VAC, 125VDCON-ONSolderingUL1054, CSA
DSF-2316-CFP11-01RSlide Switches16A, 8A125VAC, 250VACON-ONPCBUL1054, CSA
DSF-2316-DBS11-02RSlide Switches16A, 8A125VAC, 250VACON-ONSolderingUL1054, CSA
