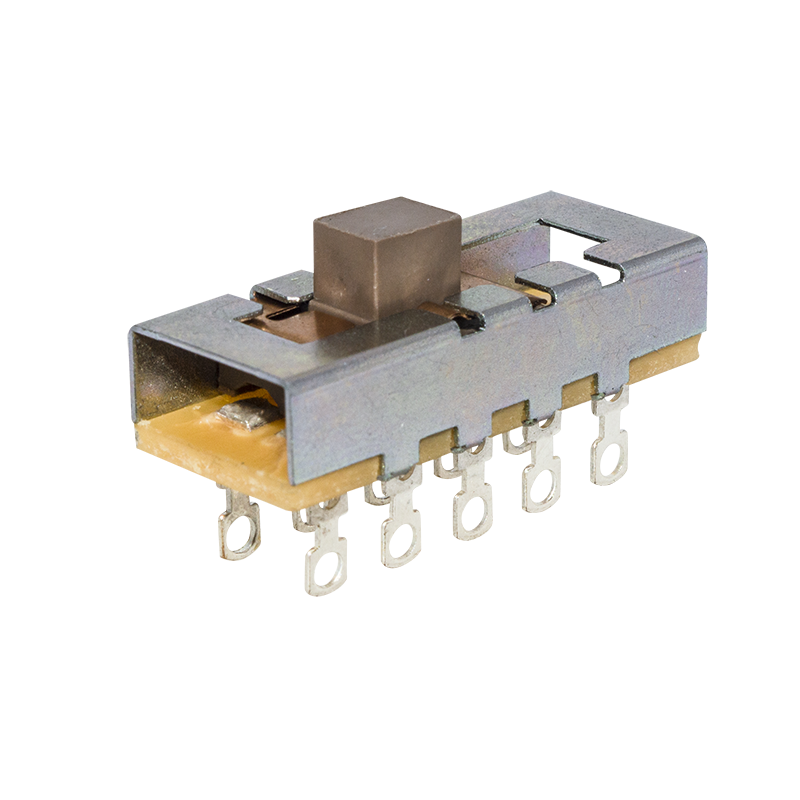

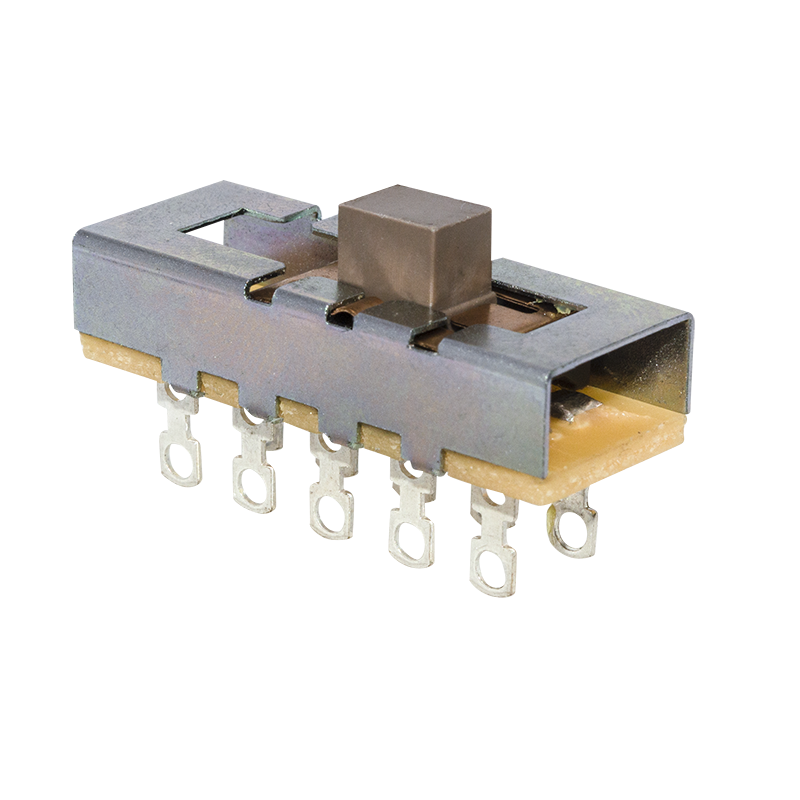

DSH
Multi-Positions Slide Switch
- Features
- Variety of terminals and knob shapes
- Multi
- circuits and Multi
- positions options
- Specifications
- UL1054 : 11A 125VAC(N.I.), 5.5A 250VAC(N.I.) 6000cycles
- 0.5A 125VDC T105/T65 6000cycles
- 6A 125VAC(N.I.), 0.5A 125VDC T65 6000cycles
- 13A 125VAC(N.I.), 6.5A 250VAC(N.I.) T65 6000cycles
- Insulation resistance: ≥ 50MΩ
- Contact resistance: ≤50mΩ
Product Varients
| Part Number(s) | Type | Current | Voltage | Circuit | Terminal Type | Certification(s) |
|---|---|---|---|---|---|---|
| DSH-2416-0-BL-31 | Slide Switches | 16A, 8A | 125VAC, 250VAC | NC.+NO. | Soldering | UL1054 |
| DSH-2416-0-BP-31 | Slide Switches | 16A, 8A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, CSA |
| DSH-2416-CFX11-01R | Slide Switches | 16A, 8A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, CSA |
| DSH-2416-DBL11-31 | Slide Switches | 16A, 8A | 125VAC, 250VAC | ON-ON | Soldering | UL1054, CSA |
| DSH-2416-DCL11-01R | Slide Switches | 16A, 8A | 125VAC, 250VAC | NC.+NO. | Soldering | UL1054 |
