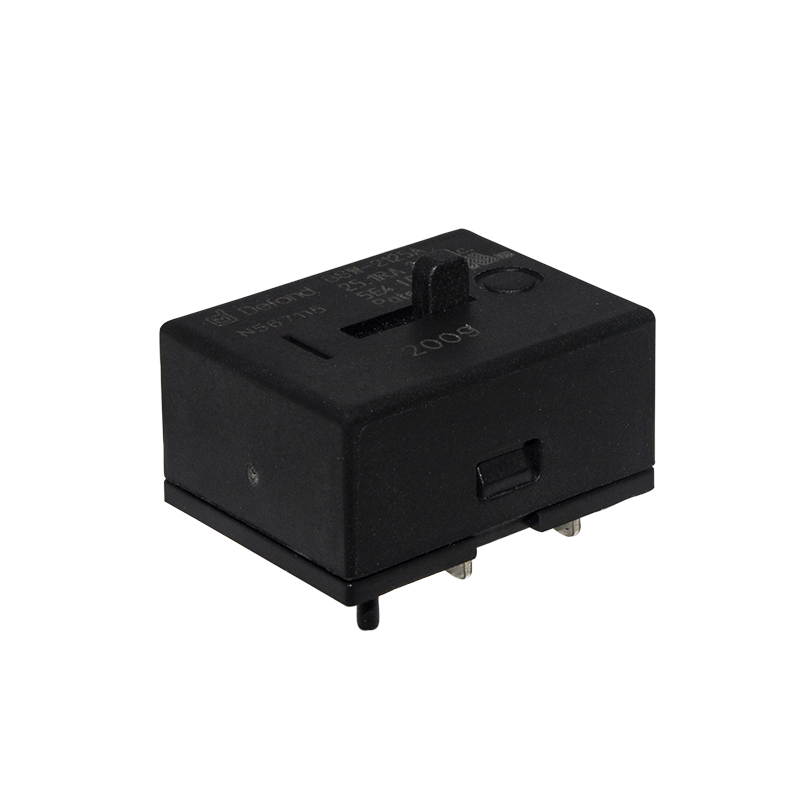

BSW
Slide switch for Brush or Brushless Motor System
- Features
- Small footprint
- Added double throw
- Dust protected
- Slide switch for brush or brushless motor system
Small slide dust protected DC switch with one normally closed contact and one normally opened contact. The normally closed contact is suitable for signal contact to activate remote electronic, while the normally opened contact has a higher rating up to 25.1A 24Vdc and is suitable for switching the motor current.
Product Varients
| Part Number(s) | Type | Approvals | Configurations | Certification(s) |
|---|---|---|---|---|
| DC Switches | 25.1A 12/14.4/16/18/20.4/24Vdc, 5E4(NO) 1A 12/14.4/16/18/20.4/24Vdc, 5EC (NC) | SPDT | cULus, ENEC | |
| DC Switches | 25.1A 12/14.4/16/18/20.4/24Vdc, 5E4 | DPST | cULus |
